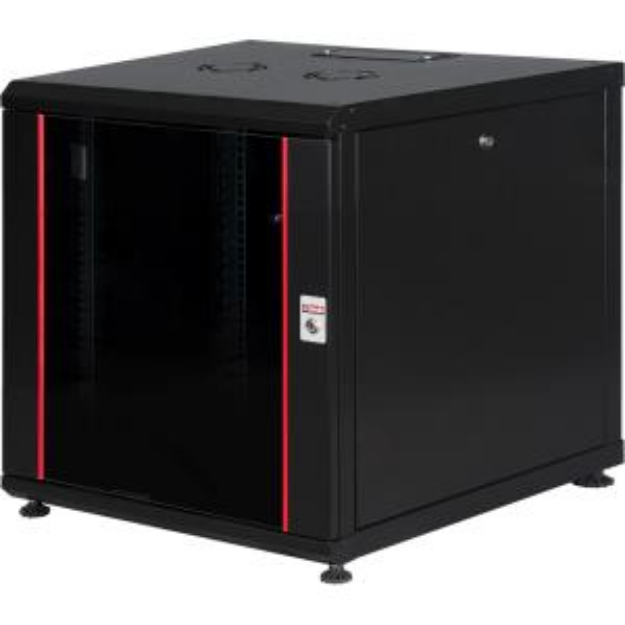

LANDE Proline 300 19" Network Rack Cabinet - Black

The Proline 300 series freestanding cabinets stand out with their durability and modular design. These cabinets, coated with RAL 9005 black epoxy polyester paint, are available in various heights and depths.

Dimensions and Heights:

• Height: Options of 12U, 16U, 20U, and 22U
• Width and Depth: W600xD600mm and W600xD800mm

Features:

• Material: Modular riveted multi-fold metal
• Front Cover: Glass front cover, 4.0mm thick, anti-static, smoked, and tempered according to EN 12150-1 standard
• Lock System: Front glass cover and rear metal cover have a single point locking cylindrical lock
• Side Panels: Lockable, removable side panels
• Mounting Posts: 1 set (2 pieces) of 19’’ device mounting posts can be adjusted along the depth at the front and back. Number markings are screen-printed on the device mounting posts
• Cable Management: There are 2 cable entry locations of 70x145mm size at the bottom and top chassis. One cable entry is brush-type, and the other is a plastic cover. Their positions can be swapped in field applications
• Ventilation: There is a mounting area for a top fan providing passive ventilation. A single or double fan module can be installed
• Load Capacity: The maximum load capacity is up to 600kg
• Feet and Wheels: 4 M10 pin feet are included in the shipping configuration. A wheel kit can be installed if desired

Quality and Standards:

• Quality Assurance: ISO 9001:2015 Quality Management System
• Environmental Management: ISO 14001:2015 Environmental Management System

Product Test and Compliance Standards:

• Mechanical Structures for Electronic Equipment: TSE:EN 61587-1, IEC 60917 and IEC 60297 series
• Climate Tests: Cold, dry temperature and damp heat (cyclic): EN 61587-1/4.2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30
• Lifting Tests: For cabinets and shelves: EN 61587-1/5.2.1
• Rigidity Tests: For cabinets and shelves: EN 61587-1/5.2.2
• Vibration and Mechanical Shock Tests: EN 61587-1/5.3.1, EN 61587-1/5.3.3, IEC 60068-2-6, IEC 60068-2-27
• Grounding: EN 61587-1/6.2
• Non-flammability: EN 61587-1/6.3
• IP Protection Class: IP20, EN 61587-1/6.4 and EN 60529
• IK Protection Class: IK07; TS EN 62262 (Former No: TS EN 50102+A1)
• Fire Resistance: TS EN 13501-1+A1 classification based on behavior tests against fire for building materials and components
• Corrosion Resistance: TS EN ISO 9227 corrosion tests in artificial atmospheres, min 1000 hours
• Cross-Cut Test: TS EN ISO 2409 for paints and varnishes
• Coating Thickness Measurement: TS 2311 EN ISO 2178 for non-magnetic coatings on magnetic metals
• Restriction of Hazardous Substances: 2011/65/EU – RoHS Compliance
• Information Technology Equipment Safety: TS EN 60950-1 Information technology equipment - Safety - Part 1: General rules – CE Compliance
