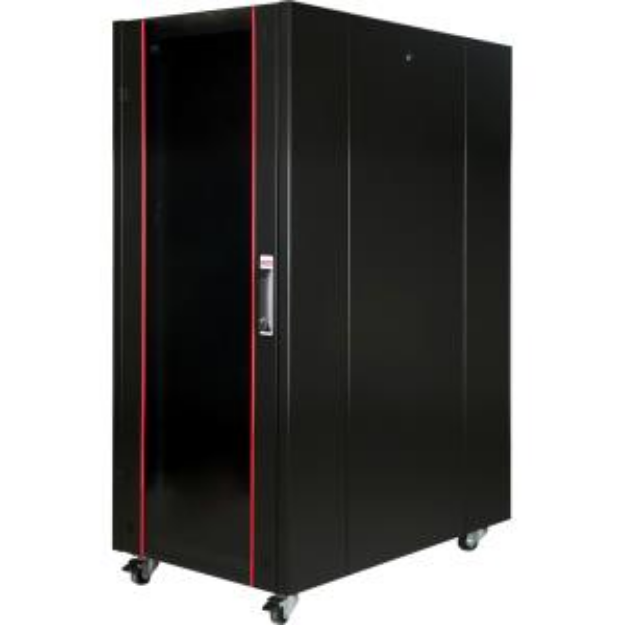

LANDE Proline 400 19" Rack Cabinet - Black

The Proline 400 series freestanding cabinets stand out for their exceptional durability and modular design. These cabinets, finished with RAL 9005 black epoxy polyester paint, are available in various heights and depths.

Dimensions and Heights:

• Height: Options include 22U, 26U, 32U, 36U, 42U, and 47U
• Width and Depth: W600 x D1000mm

Features:

• Material: Modular screw-type multi-fold metal
• Front Cover: Glass front cover, 4.0mm thick, anti-static, smoked tempered glass according to EN 12150-1 standard
• Lock System: The front glass cover and rear metal cover feature a single-point locking cylindrical lock
• Side Panels: Lockable from the outside, removable, and can be opened
• Mounting Posts: 2 sets (4 pieces) of 19’’ device mounting posts that can slide along the depth at the front and back. Number markings are screen-printed on the device mounting posts.
• Cable Management: There is a micro-jointed cable entry section at the bottom and a cable entry area at the top with brush-type or plastic covers. If needed, a sliding cable transition panel can be installed for the bottom cable entry in field applications; this is supplied as an accessory.
• Ventilation: A mounting area for a top fan provides passive ventilation. A 2 or 4 fan module can be installed.
• Load Capacity: Maximum load capacity is up to 600kg
• Feet and Wheels: 4 M10 pin feet are included in the shipping configuration. A wheel kit can be installed if desired.

Quality and Standards:

• Quality Assurance: ISO 9001:2015 Quality Management System
• Environmental Management: ISO 14001:2015 Environmental Management System

Product Test and Compliance Standards:

• Mechanical Structures for Electronic Equipment: TSE:EN 61587-1, IEC 60917, and IEC 60297 series
• Climate Tests: Cold, dry temperature, and damp heat (cyclic): EN 61587-1/4.2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30
• Lifting Tests: For cabinets and shelves: EN 61587-1/5.2.1
• Rigidity Tests: For cabinets and shelves: EN 61587-1/5.2.2
• Vibration and Mechanical Shock Tests: EN 61587-1/5.3.1, EN 61587-1/5.3.3, IEC 60068-2-6, IEC 60068-2-27
• Grounding: EN 61587-1/6.2
• Non-flammability: EN 61587-1/6.3
• IP Protection Class: IP20, EN 61587-1/6.4 and EN 60529
• IK Protection Class: IK07; TS EN 62262 (Former No: TS EN 50102+A1)
• Fire Resistance: TS EN 13501-1+A1 Classification of construction products and building elements based on fire behavior tests
• Corrosion Resistance: TS EN ISO 9227 Corrosion tests in artificial atmospheres, salt spray tests, min 1000 hours
• Cross-Cut Test: TS EN ISO 2409 Paints and varnishes
• Coating Thickness Measurement: TS 2311 EN ISO 2178 Measurement of non-magnetic coatings on magnetic metals
• Restriction of Hazardous Substances: 2011/65/EU – RoHS Compliance
• Information Technology Equipment Safety: TS EN 60950-1 Information technology equipment - Safety - Part 1: General rules – CE Compliance
