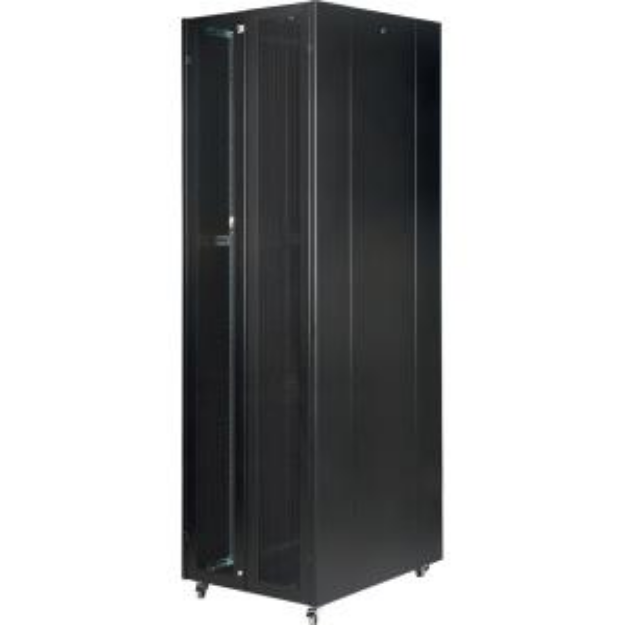

Proline 400P Series Perforated Cover Server Cabinet Features

External Height: 2233 mm

Specifications:

• Free-standing type, 42U/47U Width: 800 mm x Depth: 1000 mm
• Material: Modular screw-type multi-fold metal, finished with RAL 9005 Black Epoxy Polyester paint

Detailed Specifications:

• Perforated Front Cover: Available in heights of 42U and 47U, with a depth of 1000 mm
• Locking System: Front double-opening perforated cover and rear double perforated panel with a single-point locking cylindrical lock. Side panels are lockable from the outside, removable, and can be opened.
• Mounting Posts: 2 sets (4 pieces) of 19’’ device mounting posts that can slide along the depth at the front and back. Number markings are screen-printed on the device mounting posts.
• Cable Management: There is a micro-jointed cable entry section at the bottom and a cable entry area at the top with brush-type or plastic covers. If needed, a sliding cable transition panel can be installed for the bottom cable entry; this is supplied as an accessory.
• Ventilation: A mounting area for a top fan provides passive ventilation. A 2 or 4 fan module can be installed.
• Front Cover: Double-opening 63% multi-fold monoblock metal perforated cover.
• Maximum Load Capacity: Up to 600 kg.
• Feet and Wheels: 4 M10 pin feet are included in the shipping configuration. A wheel kit can be installed if desired.
