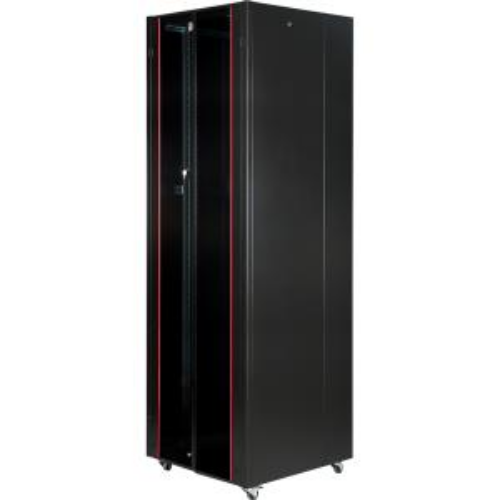

Proline 400 Series Cabinet - Black

The Proline 400 series freestanding cabinets stand out for their exceptional durability and modular design. These cabinets, finished with RAL 9005 black epoxy polyester paint, are available in various heights and depths.

Dimensions and Heights:

• Height: Options include 26U, 32U, 36U, 42U, and 47U
• Width and Depth: W800 x D800mm

Features:

• Material: Modular screw-type multi-fold metal
• Front Cover: Double-opening front glass cover, 4.0mm thick, anti-static, smoked tempered glass according to EN 12150-1 standard
• Rear Cover: Double-opening rear metal cover with a single-point locking cylindrical lock
• Side Panels: Lockable from the outside, removable, and can be opened
• Mounting Posts: 2 sets (4 pieces) of 19’’ device mounting posts that can slide along the depth at the front and back. Number markings are screen-printed on the device mounting posts. Vertical organizer is an optional accessory.
• Cable Management: There is a micro-jointed cable entry section at the bottom and a cable entry area at the top with brush-type or plastic covers. If needed, a sliding cable transition panel can be installed for the bottom cable entry in field applications; this is supplied as an accessory.
• Ventilation: A mounting area for a top fan provides passive ventilation. A 2 or 4 fan module can be installed.
• Load Capacity: Maximum load capacity is up to 600kg.
• Feet and Wheels: 4 M10 pin feet are included in the shipping configuration. A wheel kit can be installed if desired.
