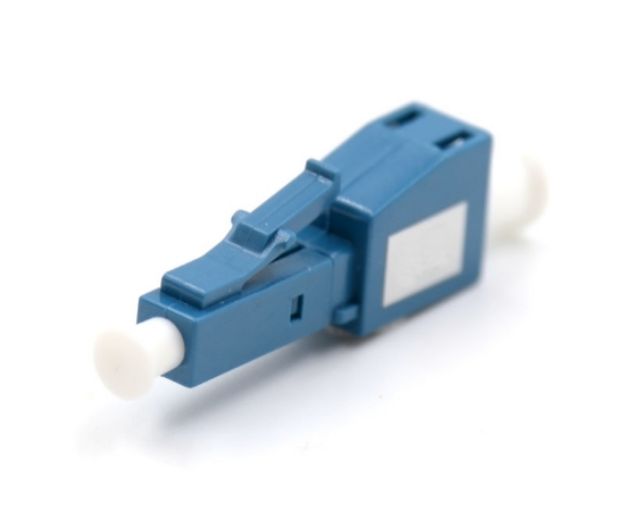

Fiber4u Fiber Optic Attenuator Series
The Fiber Optic Attenuator is a crucial component designed to reduce optical signal power in fiber optic transmission systems. It is typically used to limit the optical power received by photodetectors within optical receiver limits. Our series provides high precision and a wide attenuation range, ensuring effective optical signal management and enhanced system performance.
Features:
- Low return loss and Polarization Dependent Loss (PDL)
- High precision and stability
- Accurate control of attenuation range
- Wide attenuation range to meet diverse needs
- Precision ceramic ferrule for optimal performance
- Available in FC, SC, ST, LC, and other connector types
- Options for plastic or metal housing materials
- Durable construction for reliable performance
Technical Specifications:
- Wavelength: 1310/1550nm & 850/1300nm
- Attenuation Range: 1-10dB (1dB step), 15, 20, 25, 30dB
- Return Loss: PC: ≥50 dB, UPC: ≥55 dB, APC: ≥60 dB
- Attenuation Tolerance: ≤+/-0.5 (1-10dB) or ≤+/-1.0 (11-30dB)
- Operating Temperature: -25℃ to +75℃
- Storage Temperature: -40℃ to +85℃
Applications:
- Fiber optic telecommunication systems
- Fiber optic CATV (Cable Television)
- Fiber optic sensors
- Testing and measurement equipment
- Data transmission and signal processing
