CAT7 S-FTP Copper Cable Outdoor

DIGITUS CAT7 S-FTP Copper Cable Outdoor Type
Call for pricing
Manufacturer: DIGITUS
SKU: CP-CB-10030
Delivery date 3-5 gün

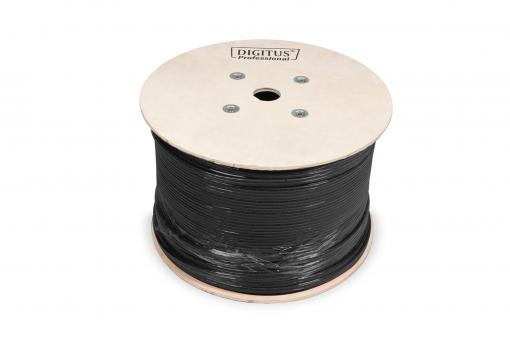

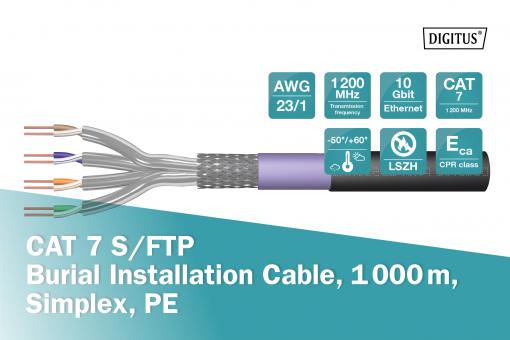

DIGITUS CAT 7 S-FTP PiMF installation cable, raw length 1000 m, drum, AWG 23/1, 1200 MHz, outdoor, PE, simplex, color black

Future-oriented standards and high-end quality for your network.

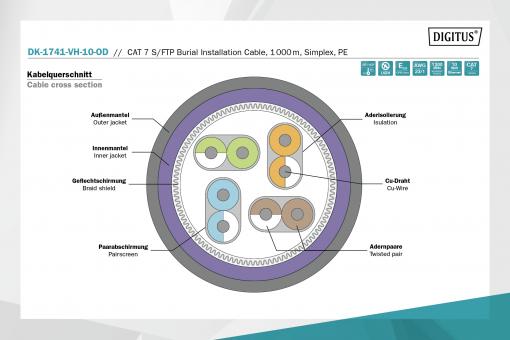

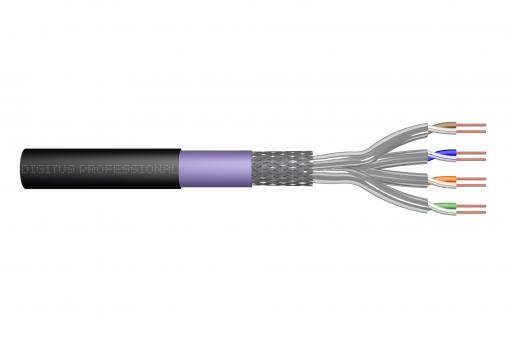

  • PROPERTIES: Cat7 underground cable with 4x2 AWG 23/1 core diameter 0.57 mm twisted pair copper cables (Cu) – 1200 MHz bandwidth up to 10 Gbit/s 10GBase-T in accordance with IEEE 802.3 – External diameter 8.5 mm – Power over Ethernet (PoE, PoE+)
  • QUALITY CHARACTERISTICS: Longitudinally watertight and UV resistant – Suitable for outdoor areas and wet rooms – LAN cable is shielded (S/FTP shielding) – Standards: ISO/IEC 11801, IEC 61156-5, DIN EN 50173-1/4, DIN EN 50288-4-1, IEC 60332-1, EN 50174-2
  • FIRE PROTECTION: Data cable corresponds to CPR Euro Class BauPVO Eca in accordance with EN 50575 – LSZH halogen-free flame-retardant low smoke – Inner sheath purple (0.5 mm thickness) – Polyethylene outer sheath (0.5 mm thickness) color black (RAL 9005)

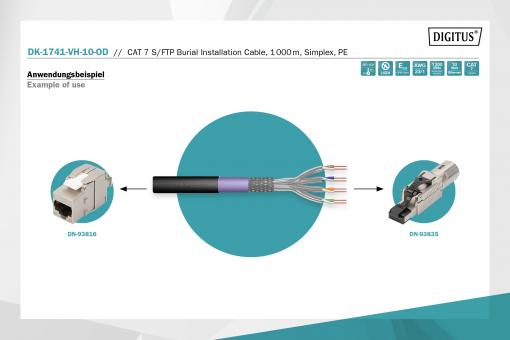

  • INSTALLATION: Connection of network components (network socket, patch panel, Keystone module, RJ45 field plug) and network devices (alarm system, monitoring camera, outdoor switch, weather station, EV charging station, wallbox)
  • APPLICATIONS: Outdoor cable for network cabling in ground, through empty pipes or surface mounting – For office buildings, home, industry, cellar or apartment (underground installation cable, network cable, DSL cable, Internet cable, TAE cable, phone cable)
Products specifications
Attribute nameAttribute value
Cable CategoryCAT 7 S-FTP
Operating EnvironmentOutdoor
