EXFO MAX-730C SM2 Single Mode OTDR Fiber Test Device
Product Code: MAX-730C-SM2-LIVE-EA-EUI-91

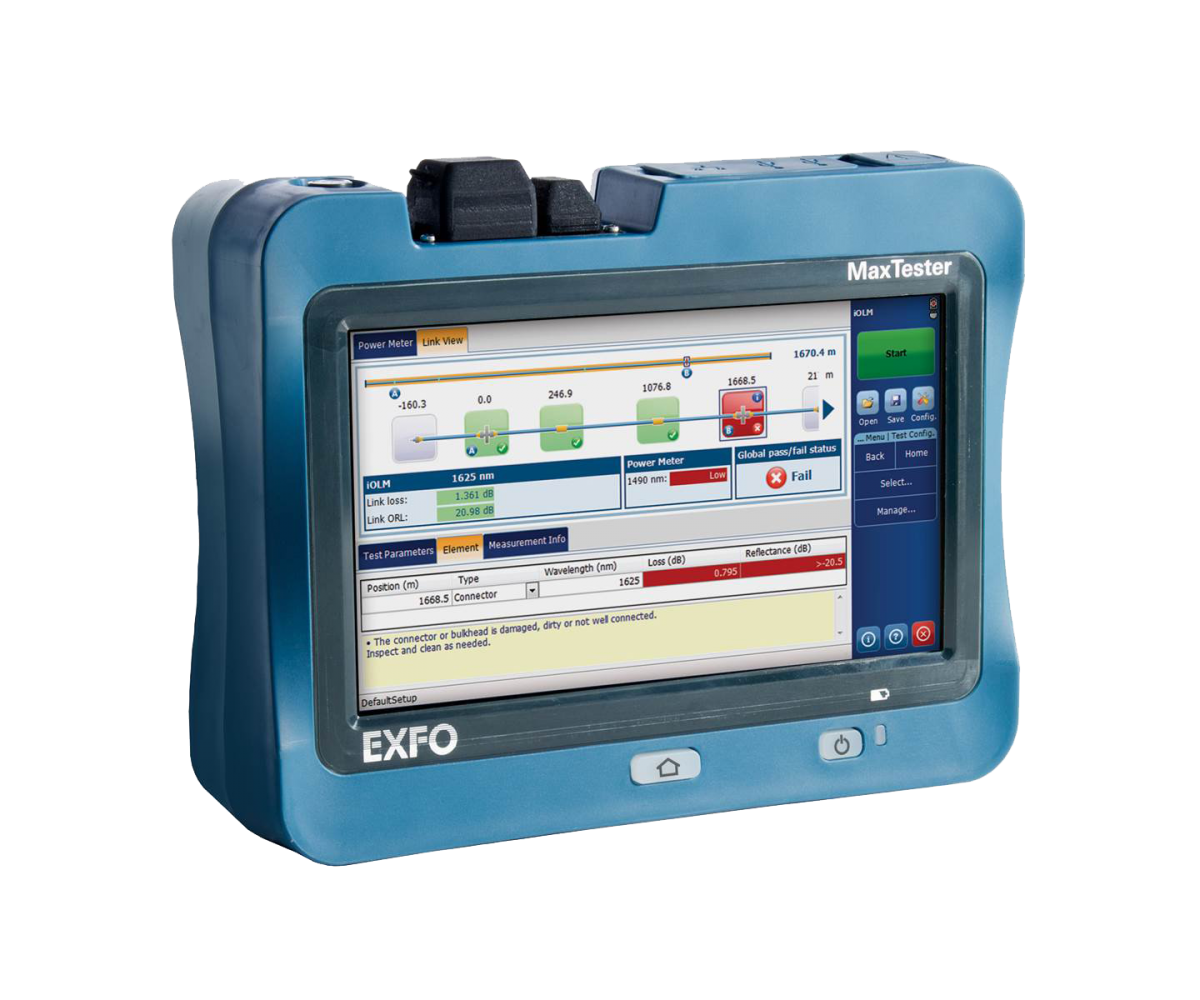

The MaxTester 730C Series is the first OTDR series inspired by tablets, designed to be practical, lightweight, and rugged for any testing environment. It offers an unprecedented user experience with its 7-inch enhanced touchscreen.
- EXFO MAX-730C is suitable for Single Mode (SM) and Live fiber optic cables.
- Approximate measurement distance of 120 km with a 39 dB dynamic range.
- 7-inch touchscreen suitable for outdoor use.
- Provides accurate fiber characterization on the first test with its effective dynamic range, ideal for private/corporate networks, data centers, and FTTx/PON (up to 1x128 splitter) networks.
For Single Mode and FTTx/PON (up to 1x128 splitter) Fiber Optic Cables:
- Approximate measurement distance of 120 km with a 39 dB dynamic range.
- Wavelengths: 1310/1550/1625 nm.
- Dynamic Range: 39/38/39 dB.
- Measurement Distance: 0.1 - 400 km.
- Pulse Width: 3 - 20,000 ns.
- 2GB internal storage.
- 7-inch outdoor suitable touchscreen display.
- Support for Turkish and English languages.
- FTTx/PON testing with splitter (up to 1x128).
- Optional Power Meter and Visual Fault Locator can be added.
- Weight: 1.5 kg.
Package Contents:
- 1 x EXFO MAX-730C
- 1 x Original Carrying Case
- 1 x Original Kit
