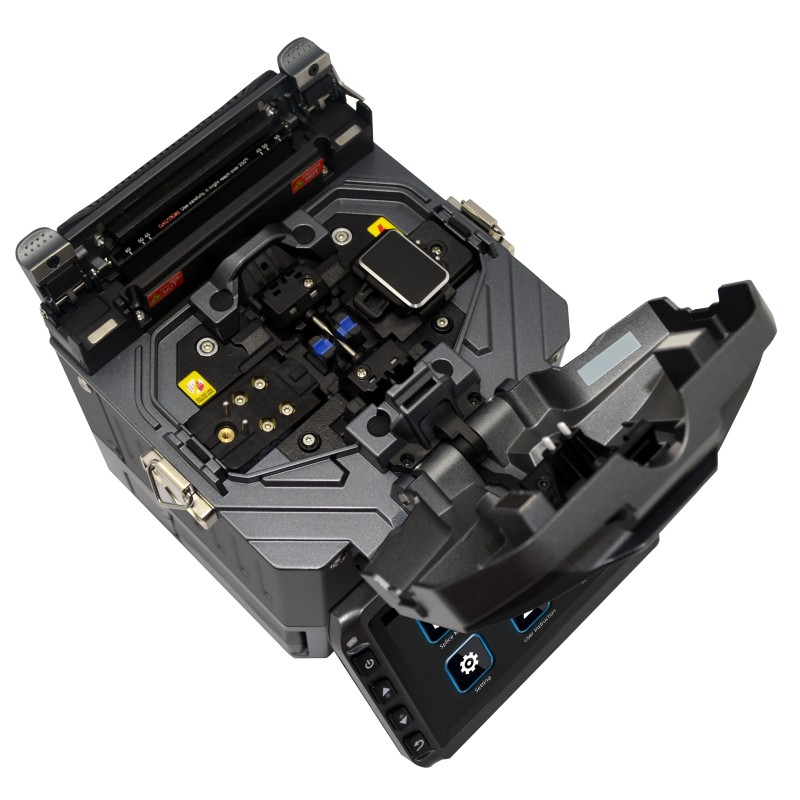

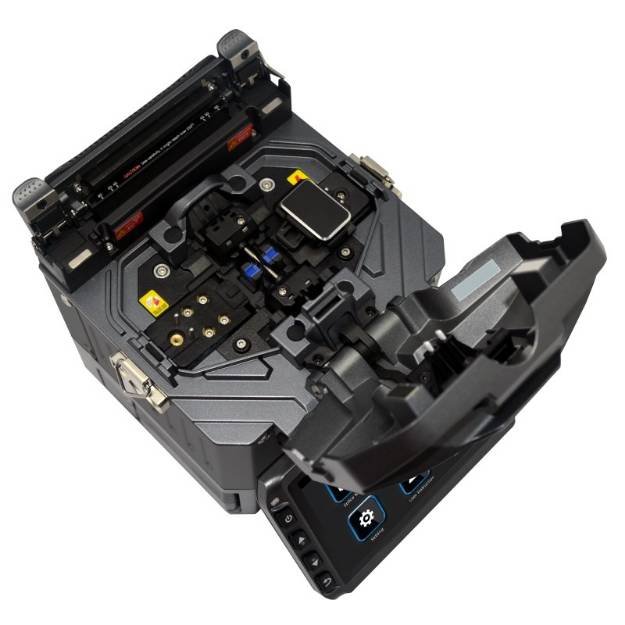

Fiberfox Mini 6S+ Wi-Fi Splicing Device

Be the first to review this product

Fiberfox Mini 6S+ Wi-Fi Fusion Splicer - Fiber Splicing Device

Call for pricing

Manufacturer: Fiberfox

SKU: FO-TS-10310

Shipping

Delivery date 3-5 gün

Overview
Reviews
Contact Us

Fiberfox Mini 6S+ Wi-Fi Fusion Splicer

The Fiberfox Mini 6S+ Wi-Fi Fusion Splicer, equipped with AOCAT (Automatic Optical Core Analysis and Tracking) system, is a Wi-Fi-enabled fusion splicer. The Mini 6S+ W features automatic alignment and fusion processes, providing an average fiber loss of 0.02 dB and a fast performance of 6 seconds. Additionally, it allows for connection to smartphones via Wi-Fi and Android or iOS apps to send PDF reports. The Mini 6S+ W can shrink splice protection sleeves from room temperature in 10 seconds and with continuous heating in 6 seconds. It uses two batteries capable of withstanding 600 splice cycles and protective heating. The Fiberfox Mini 6S+ W is also equipped with LED lighting, a tempered glass touchscreen, and is compatible with SOC (splice-on connector). All Fiberfox fusion splicers are dustproof, impact-resistant, and waterproof.

Fiberfox Mini 6S+ W Package Contents

MINI 6S+ Wi-Fi Fusion Splicer
Soft Cutter Bag
Mini 50GB+ Fiber Optic Cutter
Power Cable
USB Cable
AC Adapter
Auto Charging Cable
Cooling Tray
Spare Electrodes
2 Battery Packs
Shoulder Strap
Operation Manual CD
Carrying Case

Fiberfox Mini 6S+ W Features

Splicing Method	Core Alignment AOCAT (Automatic Optical Core Analysis & Tracking) System
Average Fiber Loss	SM (0.02dB) / MM (0.01dB) / DS (0.04dB) / NZDS (0.04dB) / G.657 (0.02dB)
Return Loss	>>60dB
Splicing Time	6s average SM
Electrode Lifespan	>5500 splices
Applicable Fiber	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), IT-G657A, IT-G657B, 0.25 mm, 0.9 mm, 2.0 mm, 2.4 mm, 3.0 mm, STRAIGHT (indoor cable)
Strip Length	Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = minimum 16mm
Coating Diameter	100-3000um
Cladding Diameter	80-150um
Heating Programs	Factory preset mode: 10, User-configurable mode: 32
Heating Time	10s (*6s with continuous heating mode)
Protective Sleeve	40mm, 60mm, SOC Connector
Data Output	Mini USB - Wi-Fi - Phone Application
Splicing Programs	Factory preset mode: 38, User-configurable mode: 90
Splicing Memory	Up to 10,000 records and 2,000 splice images
Battery	Typical 200 Cycles (Splicing and Heating) / Single Battery < 2 Battery Standard
Power Supply	AC 100-240V input or DC 9~14V
Monitor	720P Color 4.3” LCD Monitor, Full Touchscreen (Tempered Glass)
Cameras	2 CCD Camera System
Magnification	XY style: 160x, X/Y: 320x
Fiber Display	X/Y or XY, single X.Y
Weight	3.09 lb (without battery)
Dimensions	4.8 x 4.88 x 5.4 inches
Wind Protection	Maximum wind speed 15m/s
Operating Environment	Altitude 0-5,000 meters, -15~60˚C, 0~95% relative humidity
Storage Conditions	Temperature -40 to 80˚C, 0~95% relative humidity, battery -20~30˚C
Tensile Test	1.96~2.25N (standard)
