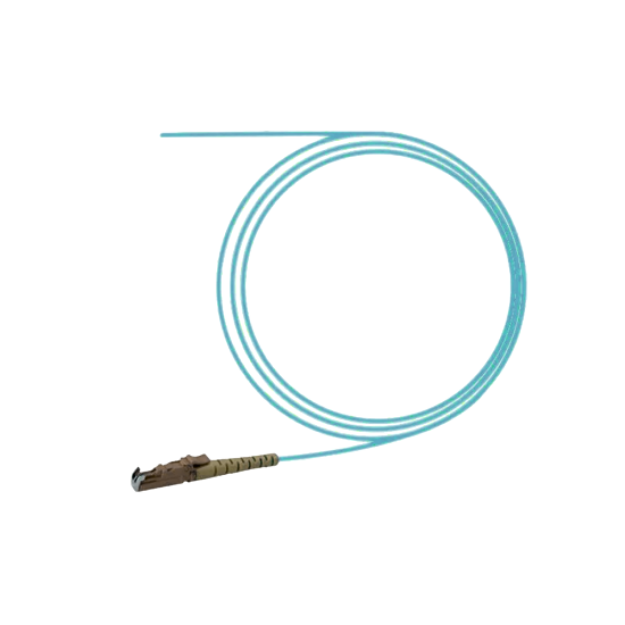

Fiber Optic Pigtail Series by Fiber4u

For over 20 years, Fiber4u has been a leading provider of fast, cost-effective solutions in Fiber Optics, Rack Cabinets, and Copper network products. In partnership with premier domestic and global manufacturers, we deliver affordable, high-quality products that exceed the expectations of the telecommunications, data management, and network infrastructure industries.

Product Features:

• Fiber Modes: Available in Single Mode (SM) and MultiMode (OM1, OM2, OM3, OM4) fiber types to suit various application needs.
• Connector Types: A broad range of connectors including SC/APC, SC/UPC, LC/APC, LC/UPC, FC/APC, FC/UPC, ST/APC, ST/UPC, MTRJ, and E2000/APC.
• Length Options: Standard 1.5 meters, with custom lengths available upon request.
• Insertion Loss: Maximum 0.30 dB for all fiber modes (IEC 61300-3-4). Typical insertion loss: 0.15 dB (Single Mode), 0.10 dB (Multi Mode).
• Return Loss: Single Mode: APC: 65 dB (Minimum), UPC: 55 dB (Minimum).
• Max Tensile Load: 6 N tensile strength for enhanced durability.
• Operating Temperature: -20°C to +60°C (IEC 61300-2-22) for reliable performance in various environments.
• Material: Made from high-quality fiber optic cable with robust connectors, offering long-lasting performance.
• Core Sizes: Single Mode 9/125 µm (OS1, OS2, G.652D, G.657A1/A2), MultiMode 62.5/125 µm (OM1) and 50/125 µm (OM2, OM3, OM4).
• Fiber Protection: Features dual-coated, bend-insensitive fibers, ideal for maintaining performance in tight bends and corners.

Applications:

• Telecommunication Networks: Fiber4u pigtails offer reliable data transmission for telecom applications.
• Data Centers: With high bandwidth and low signal loss, our pigtails support fast and robust connections in data centers.
• Industrial Fiber Networks: Designed for durability, these pigtails excel in industrial environments that demand resilient and secure connections.
• Fiber Optic Sensing and Testing: Suitable for use in video transmission, fiber sensing, and various testing instruments.

Effortless Splicing and Termination:

• Fusion and Mechanical Splicing: Fiber4u pigtails are equipped with tight buffers for easy fusion and mechanical splicing, ensuring seamless integration into your network.
• High-Density Splicing: These pigtails feature a 0.9 mm cable, making them ideal for high-density applications and splicing panels.
• Flame-Retardant Jacket: Built with flame-retardant jackets to minimize the risk of fire propagation and enhance safety during installation.
• Dust Caps: Each pigtail is equipped with dust caps to protect connectors when not in use, maintaining cleanliness and performance.

Performance Specifications:

Fiber4u's pigtail series is manufactured according to industry standards, making it the perfect solution for professional telecommunications infrastructure, data center installations, and industrial fiber network projects. Each pigtail is rigorously tested to ensure reliable connections and long-term performance.
