Netool.io Lite

New Features

• Bluetooth 5.0 and Wi-Fi Connectivity
• Detects Ports, VLANs, Switches, and More
• DHCP Discovery
• Internet Connection Testing
• 802.1X Authentication Testing
• Instantly Share Your Findings with Your Team
• netool.cloud

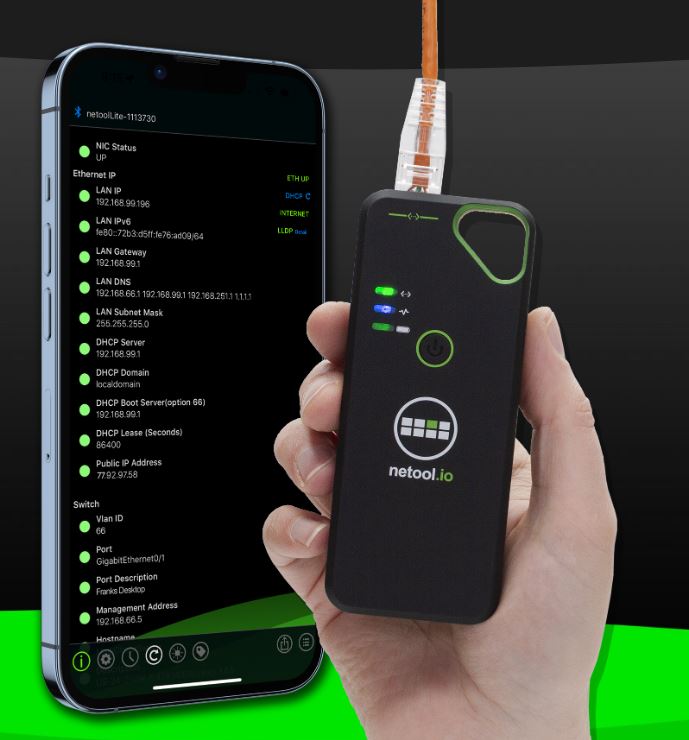

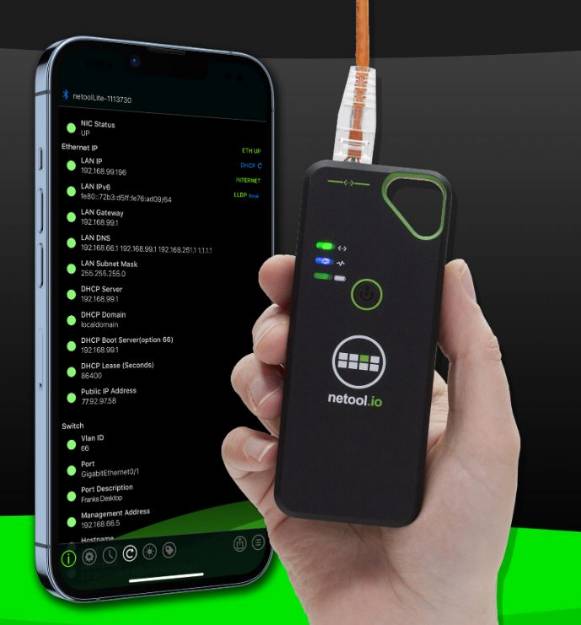

Bluetooth and WiFi Connectivity

• BLE 5.0: Connect to netool.io Lite via Bluetooth Low Energy while staying connected to your building’s Wi-Fi.
• WiFi: Enable simple NAT router mode to connect your phone to the tested network. This allows access from your phone to switches and servers.
• Flexibility: Connect to netool.Lite using an Ethernet port as well.

Ethernet Switch Port Information Detection

• Detect switch configurations using discovery protocols like CDP, CDPv2, LLDP, EAP, FDP, and SONMP.
• Untagged VLAN ID
• Switch Port
• Port Description
• Switch Management IP Address
• Switch Hostname
• Switch Description
• Switch Port Auto-Negotiation
• Tagged VLAN IDs

DHCP Discovery

• IPv4 and IPv6
• Gateway
• DNS
• Subnet Mask
• DHCP Server
• DHCP Pool
• DHCP Options
• DHCP Lease
• MTU

Internet Connection Testing

• ICMP Ping: Automatically send ICMP pings to google.com, switch management IP, gateway, or a custom address.
• HTTP Connection: When netool.io Lite is connected to an Ethernet port and an IP address is detected, it will automatically attempt to connect to a given http/web address to check internet availability.

Trace Route

• Automatically perform trace routes to a custom address every time you plug your Netool.io Lite into an Ethernet port.

Public IP Address Detection

• Automatically detect the public IP address of the network to which your Netool.io Lite is connected.

802.1X Authentication Testing

• Visually check the success of 802.1X authentication from the main menu.
• Easily configure 802.1X with your username and password in the Ethernet menu.
• Verify that your 802.1X configuration is detected with the assigned IP range or VLAN ID.

Share Your Discoveries

• Share all collected information from the main menu via text, Slack, email, and more.
• Share all tag history entries from the Tag History menu.
• Easily share your netool.cloud credentials.

netool.cloud

• Synchronize main screen data with netool.cloud
• Synchronize tag history entries with netool.cloud
• Two-Factor Authentication: How to enable 2FA

Hardware

• Two times the processing power
• Faster CPU, more RAM, and more storage, which means a long list of future updates.
• USB-C Charging: Modern charging port offers more options.
• USB-C Data Port: For future accessories.
• 2500 mAh Battery: Over 9 hours of operational time.

Comparison Table

netool.io Lite

• Bluetooth and WiFi connectivity support
• Discovery Protocol
• DHCP Discovery
• Tag VLAN ID detection
• Internet Detection
• Port Flash Mode
• Save Discovery to Tag History
• netool.cloud Support
• Sharing
• Trace Route
• 802.1X Support

netool.io Pro2

• Bluetooth and WiFi connectivity support
• Discovery Protocol
• DHCP Discovery
• Tag VLAN ID detection
• Internet Detection
• Port Flash Mode
• Save Discovery to Tag History
• netool.cloud Support
• Sharing
• Trace Route
• 802.1X Support
• PCAP Capture to USB Drive
• Untagged Port Configuration Automation
• Tagged VLAN Port Configuration Automation
• IF/Then Switch Configuration Automation
• ARP Scanning
• Rconsole - Remote RS232 Console
