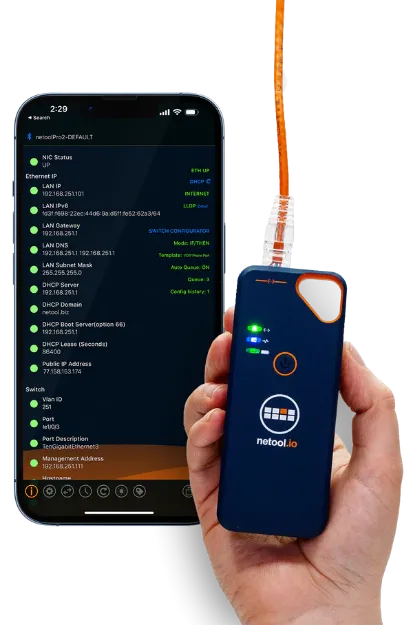

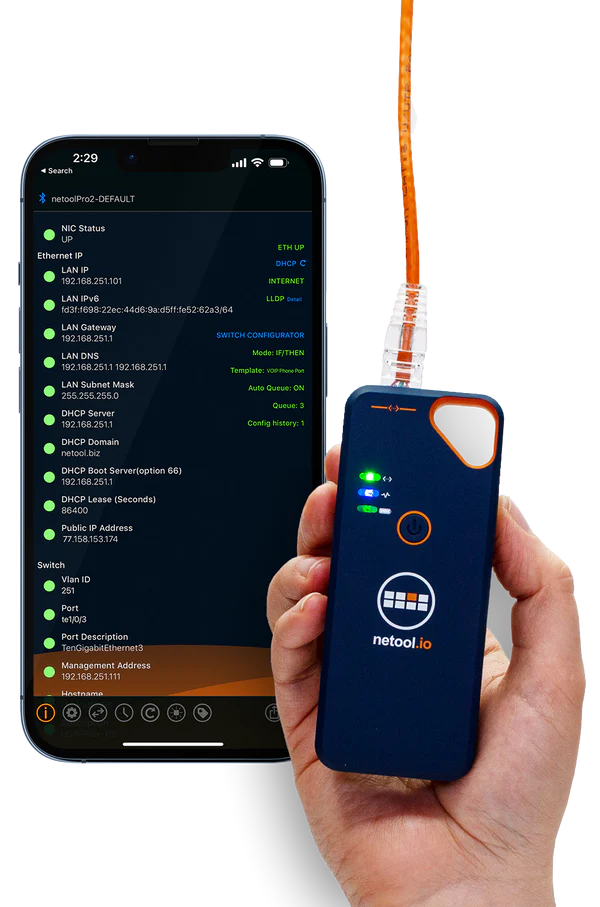

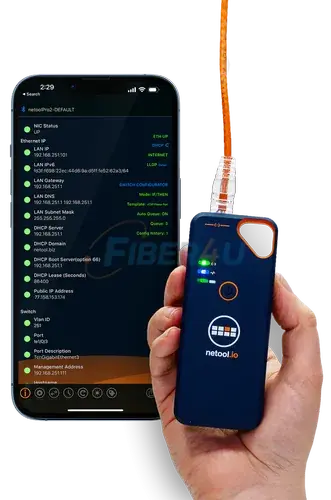

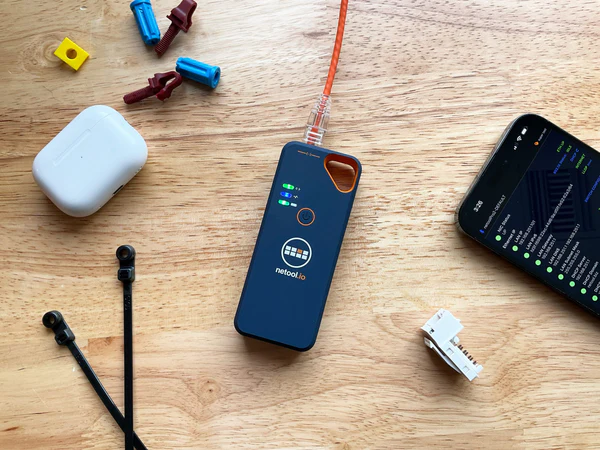

Introducing the all NEW netool.io Pro2

New Features

• Rconsole - Remote RS232 Console *NEW*
• Bluetooth & Wi-Fi Application Connectivity
• Network Automation with SSH in Your Pocket
• Automatic Configuration of Unlabeled Ports
• Automatic Configuration of Tagged VLAN Ports
• Custom IF/THEN Templates
• PCAP Capture and Review
• Automatic Queuing for Configuration
• 802.1X Testing
• Documentation and More

Configuring Unlabeled VLAN Identifiers

Automatically configure an unlimited number of Ethernet ports. Queue ports to a VLAN identifier and then configure them automatically. LLDP or CDP must be enabled on the switch for this.

• Queue When Needed: Queue ports for unlabeled configuration at any time using the manual queue in the main menu.
• Review Changes: Review saved logs in the history menu.
• No Software Knowledge Required: No need to know switch CLI syntax to configure unlabeled ports.

Configuring Tagged VLANs

• Queue and configure Tagged VLAN Identifiers automatically. This is perfect for access point deployments.
• Select which ports to add to the queue manually.
• No need to know switch CLI syntax to configure tagged and local VLAN identifiers on a port.

Configuration with IF/THEN

• Use the power of IF/THEN statements to create custom configuration deployments.
• Export your IF/THEN templates with AES 128 encryption and share them with a colleague.
• Import a shared or backed-up IF/THEN template. Download ready-made templates and more. (WiFi mode only)

Automatic Queued Deployment

• If you need to configure many ports, allow your netool to automatically detect and then configure the ports using LLDP or CDP.
• Share queue configuration changes with a colleague for verification.
• Change the port description for each queued port.
• You can run the entire queue or just a single queue.

PCAP Capture

• Capture packets to a USB drive. The drive is not included; we recommend a SanDisk.
• Use filters to capture only the data you need, such as HTTP.
• Convert to text format and download the captured PCAP file from the root of the USB drive attached to the netool.io Pro.

Review Logs

• Detailed output logs are recorded for every successful SSH session established by Netool.
• Share logs via email, Slack, txt, and more.
• All passwords detected in logs are masked before recording.

Secure Deployment

• SSH key credential profiles cannot be modified, ensuring security when handing the netool.io to another user.
• We added the ability to disable IF/THEN statements for any SSH key credential profile.
• You can restrict the VLAN identifiers that Netool can configure for specific SSH key credential profiles.

Data Export and Import

• Export or import credential profiles using AES 128 encryption. (WiFi mode only)
• Export and share custom IF/THEN statements with your team via email, Slack, txt, and more. (WiFi mode only)

802.1X Authentication Testing

• Visually see if 802.1X authentication is successful from the main menu.
• Easily configure 802.1X with your username and password in the Ethernet menu.
• Verify that your 802.1X configuration is detected with the assigned IP range or VLAN identifier.

Share Your Findings

• Share all collected information from the main menu via any text-based application, Slack, email, and more.
• Share all tag history entries from the Tag History menu.
• Easily share your Netool.cloud ID.

Bluetooth and Wi-Fi Connectivity

• BLE 5.0: Connect to Netool.io Lite with Bluetooth Low Energy while staying connected to your building WiFi.
• WiFi: Enable simple NAT router mode to connect your phone to the network being tested. This allows you to access switches and servers from your phone.
• Flexibility: Connect to netool.Lite any way you prefer, even using the Ethernet port.

Network Configuration Automation

Supported Switch OS:

Unlabeled VLAN Mode

• Cisco IOS
• Dell Power Connect
• Ubiquiti EdgeOS
• Cisco IOS with TCL Scripting
• Netgear ProSafe
• Cisco Small Business Series
• HP/Aruba - NEW!
• Juniper OS (in development)
• Brocade/Ruckus (in development)
• MikroTik RouterOS

Tagged VLAN Mode

• Cisco IOS
• Dell Power Connect
• Ubiquiti EdgeOS
• Cisco IOS with TCL Scripting
• Netgear ProSafe
• Cisco Small Business Series
• HP/Aruba - NEW!
• Juniper OS (in development)
• Brocade/Ruckus (in development)
• MikroTik RouterOS

IF/THEN Mode

• Any switch or router that supports SSH connections

RS232 Console Cable

• Works with our custom RS232 console cable. (Sold separately)
• Connect remotely to any RJ45 RS232 console port with your phone, tablet, or computer.
• Change RS232 settings like Baud Rate, Data Bits, Parity, Stop Bits, Flow Control, or add credentials to secure access.

Requirements: Pro2 firmware build 191+, iOS app version 2.0.30, Android app version 2.0.30

All Standard Version Features

Without compromise.

• Port and VLAN Detection: Detect ports, switch management, VLAN IDs, and more using LLDP/CDP/EDP/FDP.
• DHCP Test: Test and detect DHCP address, DHCP server, DHCP lease time, DHCP options, and more.
• Tagged VLAN Detection: Live detection of active Tagged 802.1q VLAN IDs.
• Connection Testing: Test connectivity with ICMP, http trace-route, and more.
• Network Mapping: Automatic ARP and TCP port scanning. No subnet size limitations.
• And more: Continuous updates and feature additions. If you have a feature request, please contact us.

Traceroute

Add an address and netool will perform a traceroute to this address every time it gets an IP address.

netool.cloud

• Synchronize main screen data with netool.cloud
• Synchronize your tag history entries with netool.cloud
• Two-Factor Authentication: How to enable 2fa

Hardware

• Twice the processing power
• Faster CPU, more RAM, and more storage, which means a long list of future updates.
• USB-C Charging: Modern charging port offers more options.
• USB-C Data Port: For PCAP captures and future accessories.
• 2500 mAh Battery: Over 9 hours of operation time.

Comparison Table

netool.io Lite

• Bluetooth & Wi-Fi connectivity support
• Discovery Protocol
• DHCP Detection
• Tag VLAN ID Detection
• Internet Detection
• Port Flash Mode
• Save Discovery to Tag Discovery
• netool.cloud Support
• Sharing
• Trace Route
• 802.1X Support

netool.io Pro2

• Bluetooth & Wi-Fi connectivity support
• Discovery Protocol
• DHCP Detection
• Tag VLAN ID Detection
• Internet Detection
• Port Flash Mode
• Save Discovery to Tag Discovery
• netool.cloud Support
• Sharing
• Trace Route
• 802.1X Support
• PCAP Capture to USB Drive
• Unlabeled Port Configuration Automation
• Tagged VLAN Port Configuration Automation
• IF/Then Switch Configuration Automation
• ARP Scanning
• Rconsole - Remote RS232 Console
