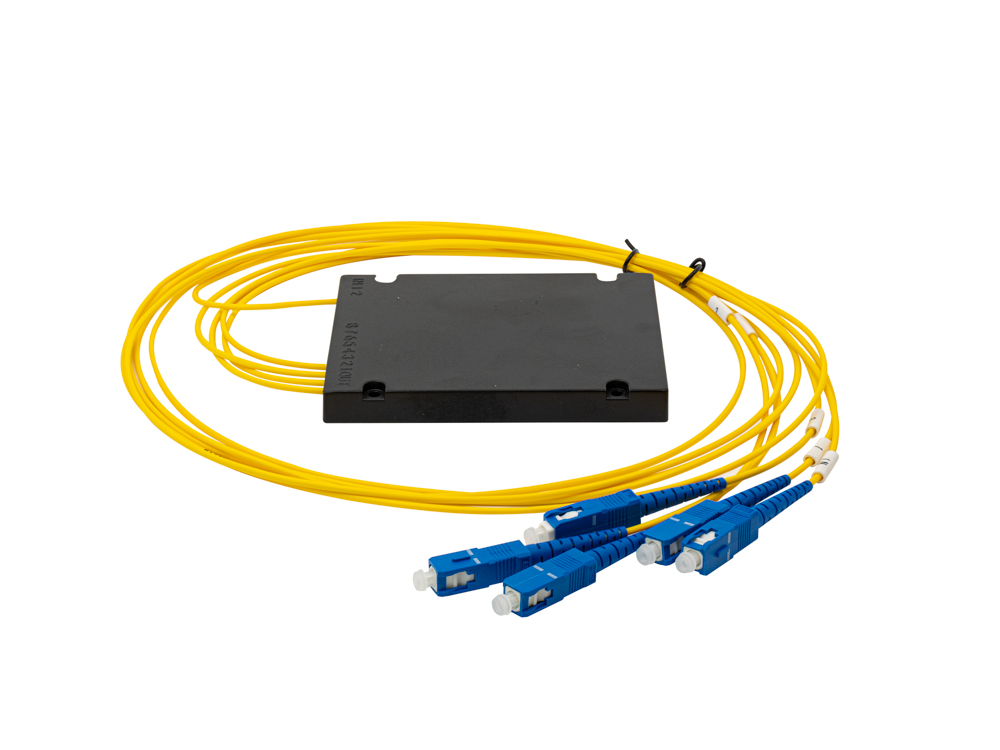

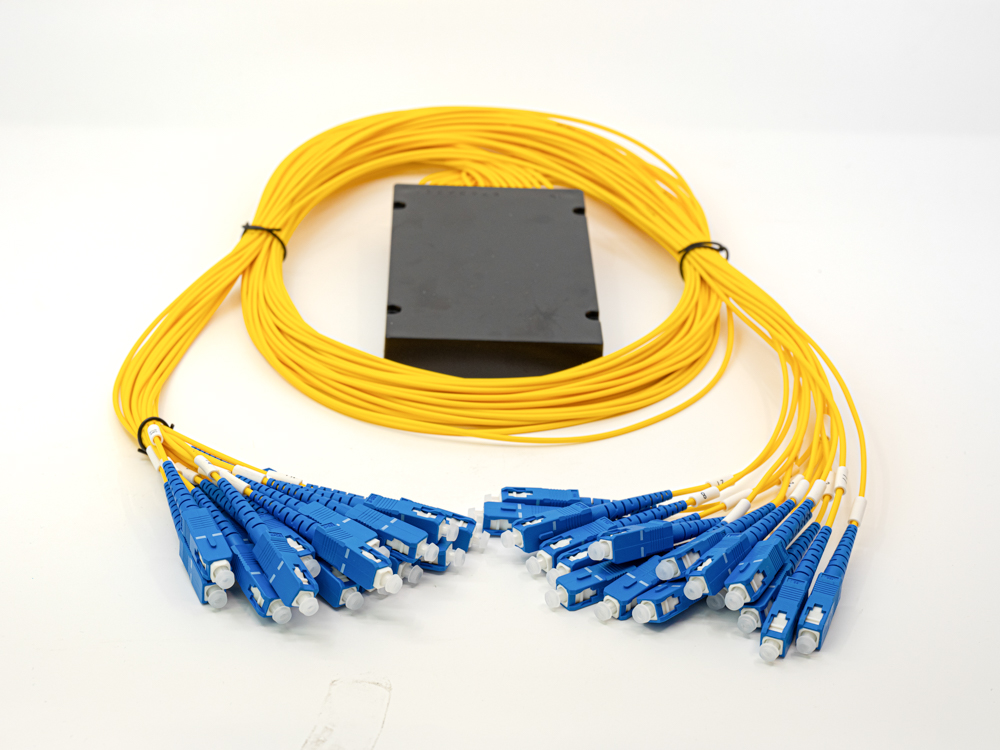

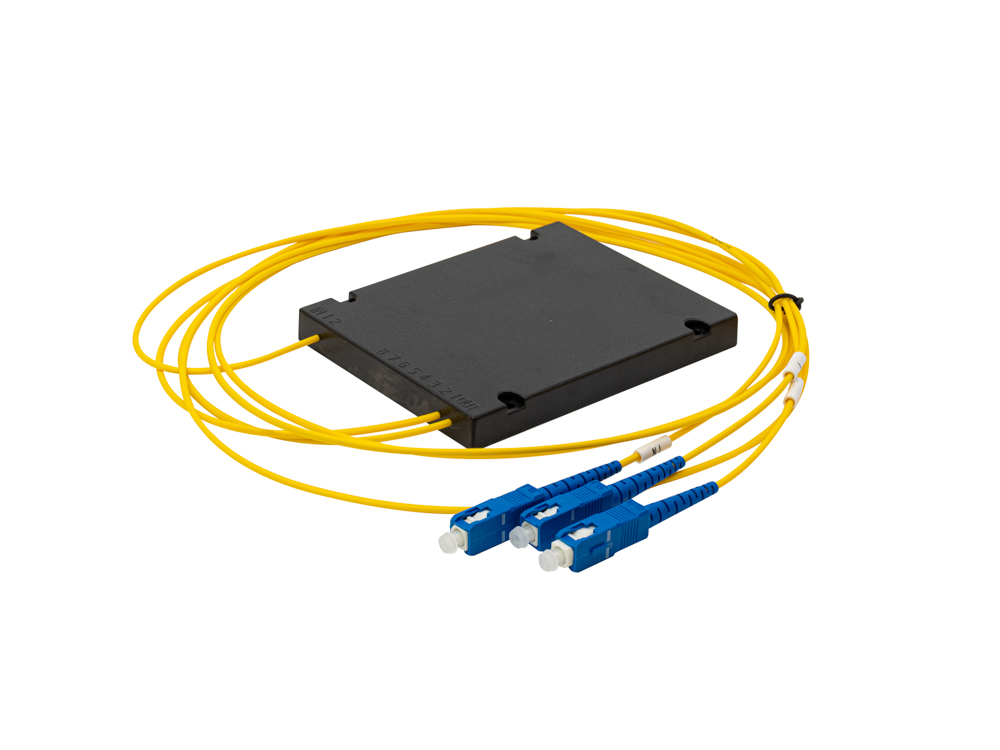

Splitter SC/UPC SM 9/125µ (Single Mode) Cassette Type

The Splitter SC/UPC SM 9/125µ (Single Mode) Cassette Type is a splitter module that divides a single fiber optic power input into multiple outputs, creating a uniformly distributed PLC (Planar Lightwave Circuit). This cassette-type splitter is designed to be compatible with SC/UPC connectors and single-mode fiber optic cables.

Features:

• Operation Mode: Single Mode
• Wavelength: 1260nm ~ 1650nm
• Maximum Input Power: 500mW
• Operating Temperature: -40℃ ~ +85℃
• Connector Type: SC/UPC
• Type: Cassette Type
• Output Types: 1xN & 2xN

Applications:

• A. Passive Optical Network (PON) FTTx Architectures
• B. Fiber Optic Equipment or Systems
• C. CCTV Networks

Advantages:

• Uniform power splitting with PLC technology
• High reliability and long lifespan
• Excellent optical performance
• Wide operating temperature range
• Compact and convenient cassette-type design
