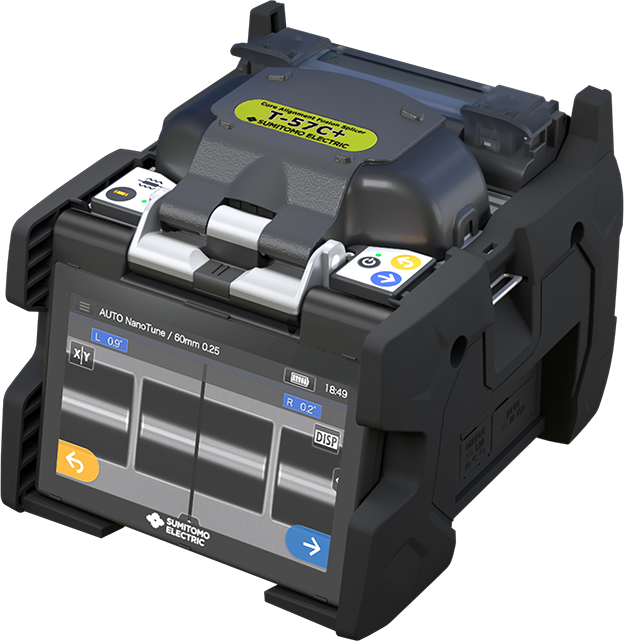

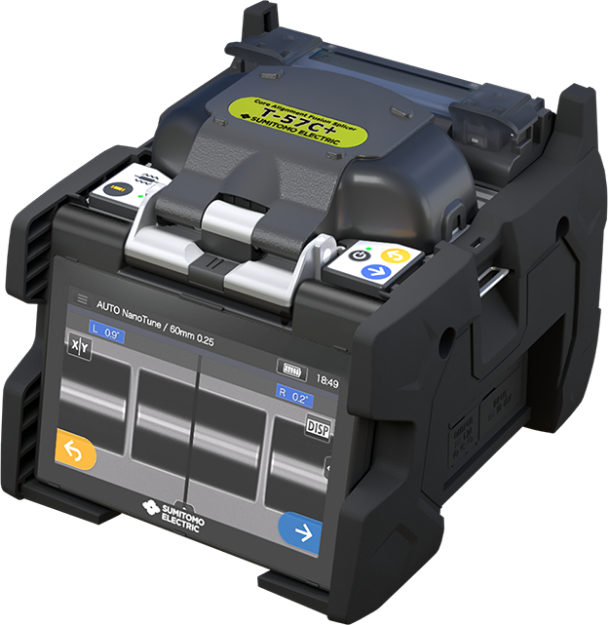

Sumitomo T-57 C+ Fusion Splicer - Fiber Splicing Tool
The T-57 C+ model by Japanese manufacturer Sumitomo offers exceptional value with its unique features, combining price and performance advantages.
Quick Start Guide
The T-57 C+ model provides high-quality and reliable splicing with core alignment for all known fiber cable types in various industries, featuring a 6-second splice time, 15-second heating time, reinforced body, sturdy carrying case, capability of performing at least 6000 splices with a single electrode, and at least 300 splices with a single battery charge.
Sumitomo offers certified training to users of their fiber optic splicing equipment at no additional cost.
Technical Specifications:
- Compatible with all known fiber cable types (SMF, MMF, DS/NZ, BIF, EDF, etc.)
- 6 seconds splice time
- 15 seconds heating time
- 0.02 dB splice loss
- 2.2 kg weight
- 5-inch WVGA next-generation smartphone touch screen
- IPx2 water resistance
- IP5x dust resistance
- Training videos
Compact, Lightweight, and Faster
● 300 splices with a 2 kg battery
● 6-second splicing time with SM Fast Mode
● 15-second heating time

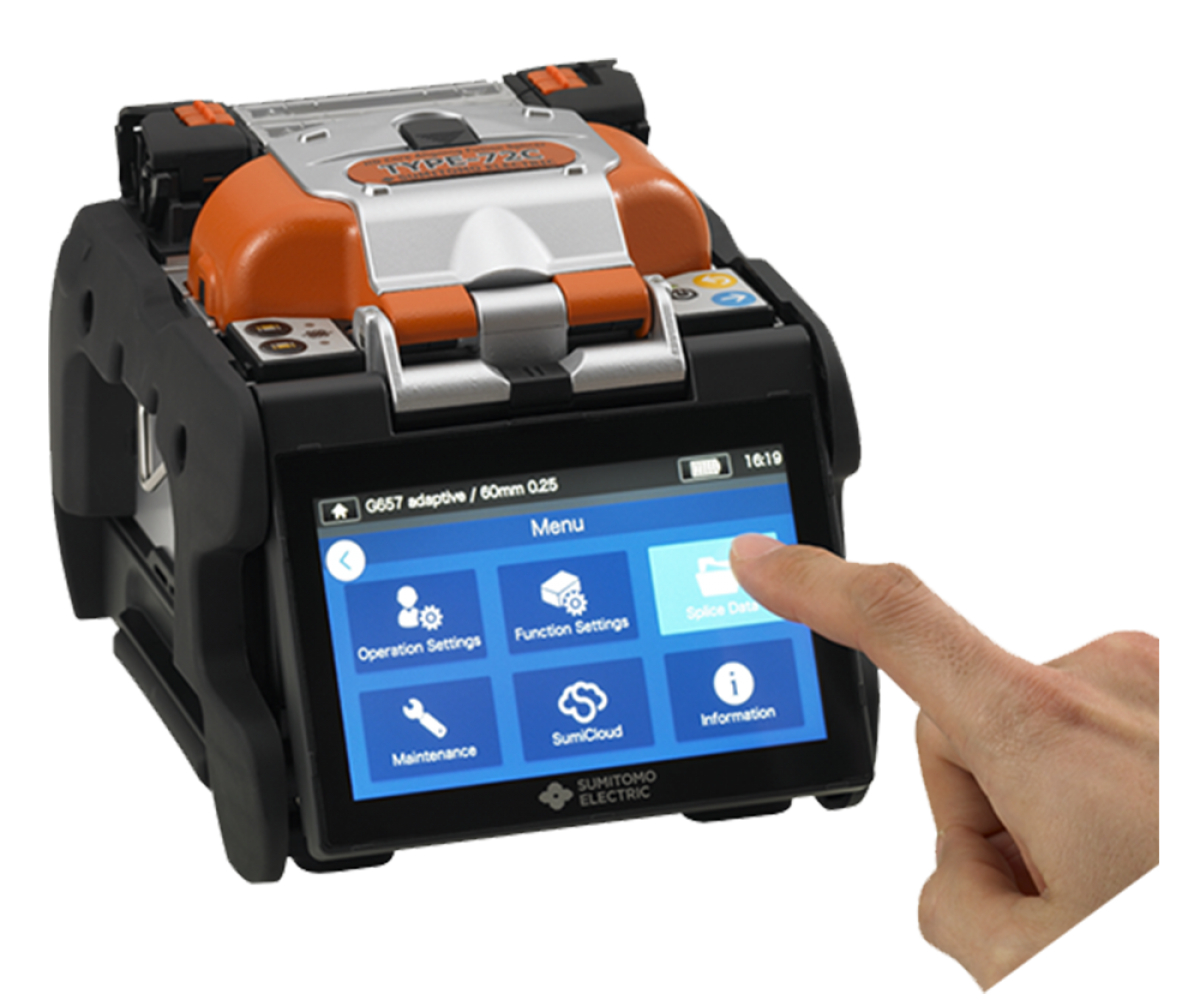

New Touch Panel and User Interface
● 5-inch wide and high-resolution color touch LCD screen
● Easy to use, similar to a mobile phone
Environmental Durability
● IPx2 water resistance
● IP5x dust resistance
● Splicing capability at 50°C ambient temperature
● Operable at altitudes up to 6000 meters
● Drop-resistant up to 76 cm height on five surfaces
High-Speed Heating
● 15 seconds heating time
● Efficient
● Programmable

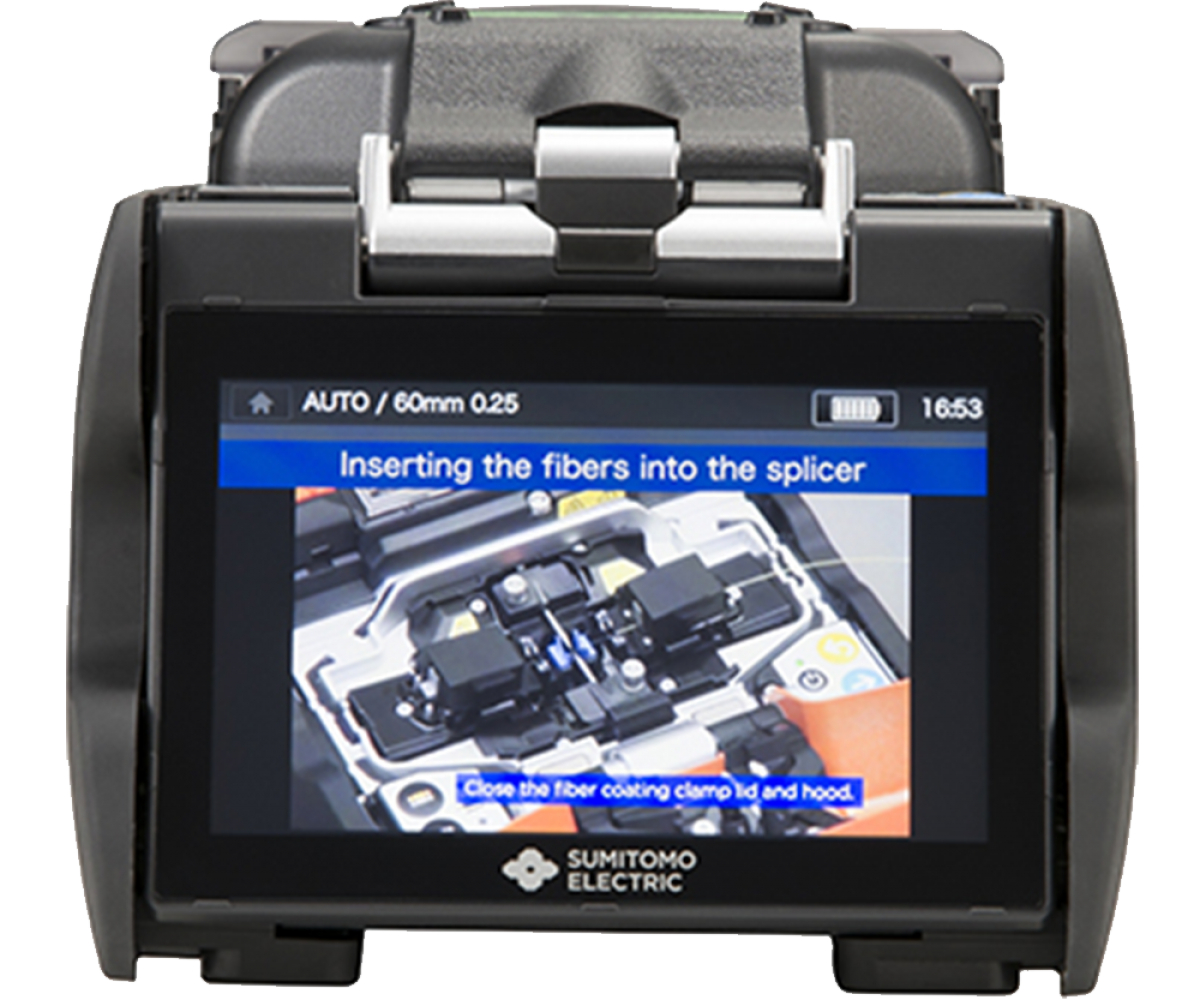

Video Training
● Training videos for splicing techniques
Product Contents and Accessories
- 1 x T-57C Fusion Splicer
- 1 x Cleaver (Fiber Cutting Tool)
- 1 x Battery
- 1 x Spare Electrode (min. 6000 splices capability)
- 1 x Alcohol Bottle
- 1 x Stripper
- 1 x Carrying Case
- 1 x Charger
