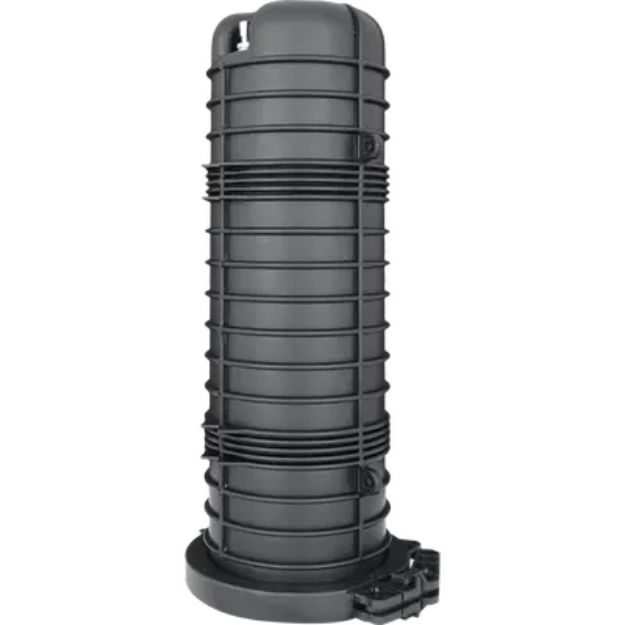

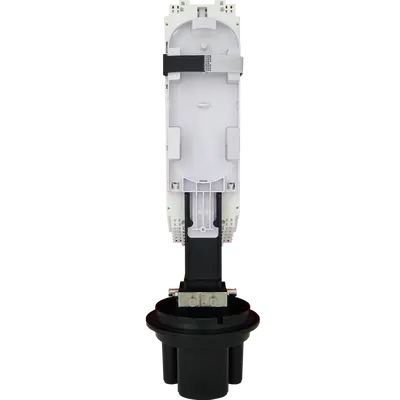

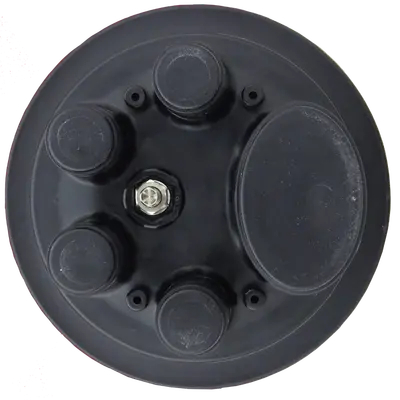

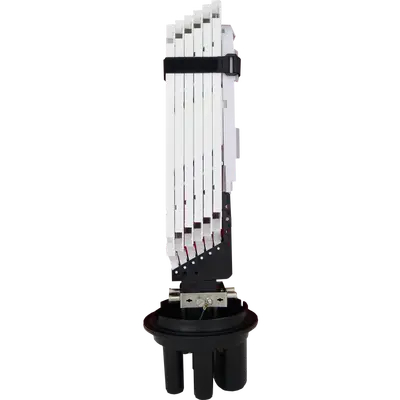

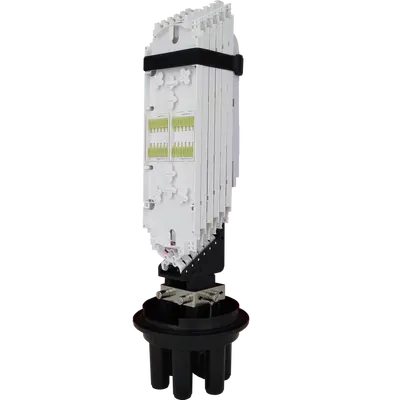

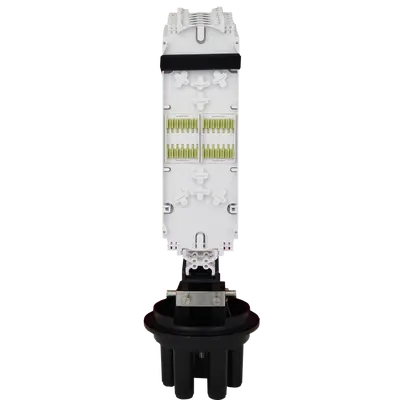

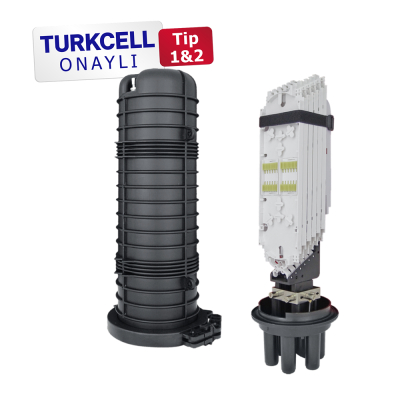

Fiber Optic Underground Splice Box Dome Type | 6 Cassette | 144 Fiber Capacity

The dome-type underground fiber optic splice box is specially designed for the secure termination and protection of fiber optic cables underground. Made from high-resistance materials, dome-type boxes offer durability against weather conditions, water, and other external factors. These boxes provide an ideal solution for reliable and protected fiber optic infrastructure termination underground.

Features:

• Durable Material: Constructed from high-resistance materials suitable for underground conditions.
• Weather Resistance: The dome-type design ensures waterproofness and durability against weather conditions.
• Secure Termination: Specifically designed to ensure the secure termination of fiber optic cables.
• Protection and Isolation: Provides an isolated environment to protect fiber connection points from external factors.

Applications:

Dome-type underground fiber optic splice boxes are used in various applications such as telecommunications infrastructure, fiber optic networks, security systems, and energy transmission lines. They offer a reliable and durable termination solution for underground fiber optic infrastructure.

Specifications:

• 6 Cassette, 144 Fiber capacity
• 4 ports, plastic rear base
• Suitable for cut, non-cut, and tight buffer applications
• Compatible with all fiber optic cables
• Includes casing retention and central force element mounting system
• Closure structure and lightweight plastic material provide resistance to chemicals and UV rays
• Minimal tools required for installation and suitable for re-entry
• All hardware included
• Protection class: IP68
• RoHS Compliance

Box Contents:

• Instruction manual
• 6 x 24F splice cassettes
• 6 cm heat-shrink protective sleeves up to capacity
• Velcro straps for securing cassettes
• 4 round heat-shrinkable tubes
• 1 oval heat-shrinkable tube
• Fork clip (magnesium alloy aluminum)
• Adhesive aluminum tape set for cable insulation
• Sandpaper
• Cable tie set
• Hose for fiber tube (from cable end to cassette entry)
• Numbered tape for distinguishing fibers and fiber tubes
• Grounding wire for internal parts of the splice box (pre-installed)
• Splice box grounding branch with screws
• Valve structure for air filling the splice box
• 2 alcohol cleaning wipes
• Desiccant

Package Dimensions (cm):

57 x 20 x 23

Package Weight (Kg):

4.5
