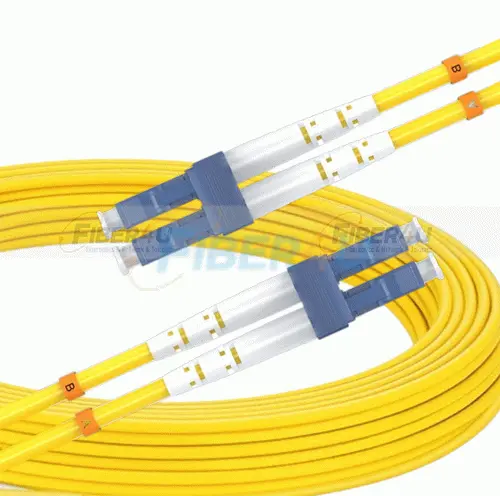

Fiber Optic Patchcord Series by Fiber4u

For over 20 years, Fiber4u has been the top choice for fast, cost-effective solutions in Fiber Optics, Rack Cabinets, and Copper network products. By partnering with leading domestic and global manufacturers, Fiber4u ensures both speed and affordability, without compromising on quality. Our patch cords meet the highest standards across telecommunications, data management, and network infrastructure, providing reliable performance that exceeds industry expectations.

Product Features:

• Connector Types: Available in a wide range of connectors including SC, LC, FC, ST, E2000, MTRJ, and MPO, offering flexibility for various applications.
• Polish Types: Ultra-Polish (UPC) and Angle-Polish (APC) options are available to match the specific requirements of your network infrastructure.
• Fiber Types:
  • Single Mode: 9/125µm (OS1, OS2, G.652D, G.657A1/A2)
  • Multi Mode: 62.5/125µm (OM1), 50/125µm (OM2, OM3, OM4)
• Lengths: Standard lengths up to 50 meters are available, with custom lengths upon request.
• Jacket Options: Versatile jacket options, including 2 mm, 3 mm, and MPO ribbon, to meet various installation needs.
• Insertion Loss: Maximum insertion loss of 0.30 dB, with typical values of 0.15 dB for single mode and 0.10 dB for multi mode (as per IEC 61300-3-4).
• Return Loss: Single mode return loss values of APC: 65dB (Minimum) and UPC: 55dB (Minimum).
• Operating Temperature: Reliable performance across the entire -20°C to +60°C temperature range (as per IEC 61300-2-22).
• Max Tensile Load: 6 N tensile strength ensures durability even under demanding conditions.
• Packaging: Each patch cord is individually packaged with comprehensive performance metrics, ensuring quality and consistency.

Applications:

• Telecommunications
• Data Centers
• CATV Networks
• FTTH (Fiber to the Home)
• Video Transmission
• Testing Equipment

Why Choose Fiber4u Patch Cords?

• Comprehensive Range: With a vast selection of connector types and polish options, Fiber4u patch cords are designed to meet the diverse needs of your network infrastructure.
• High Performance: Minimal insertion loss and maximum return loss ensure optimal signal quality across all applications.
• Custom Solutions: Our patch cords are available in different fiber types, lengths, and jacket styles, tailored to your specific requirements.
• Durability and Reliability: Manufactured to withstand harsh conditions while maintaining top-tier performance, ensuring long-lasting and reliable connections.

Fiber4u offers immediate delivery for standard patch cords, ensuring that your network installation projects proceed without delay. Contact us for custom lengths or special configurations to suit your unique project requirements.
